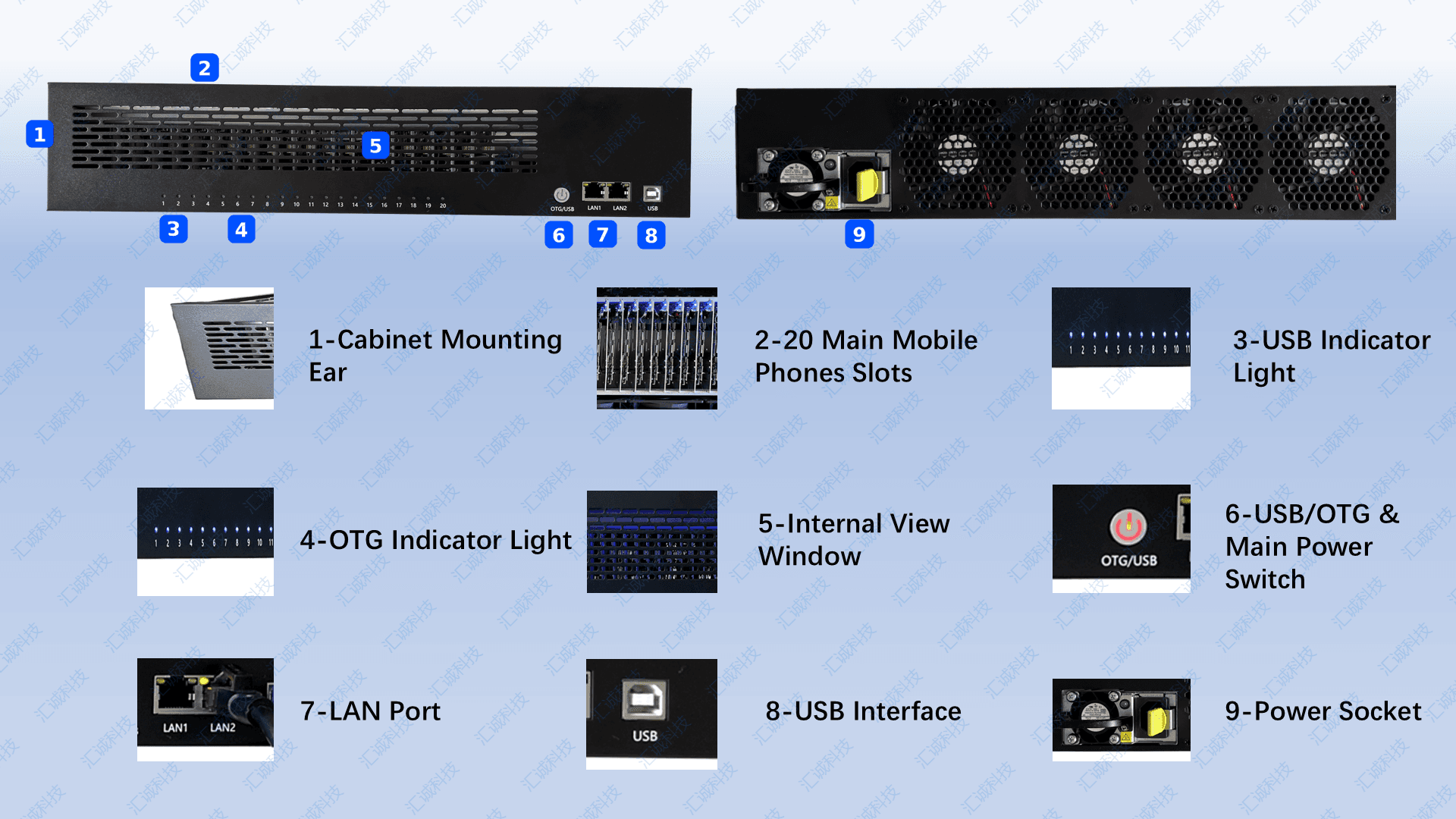

Chassis structure diagram — 20 slots, USB + LAN
- Ports: USB · LAN
- Board: structure diagram
Phone Farm Box
Phone Farm Box

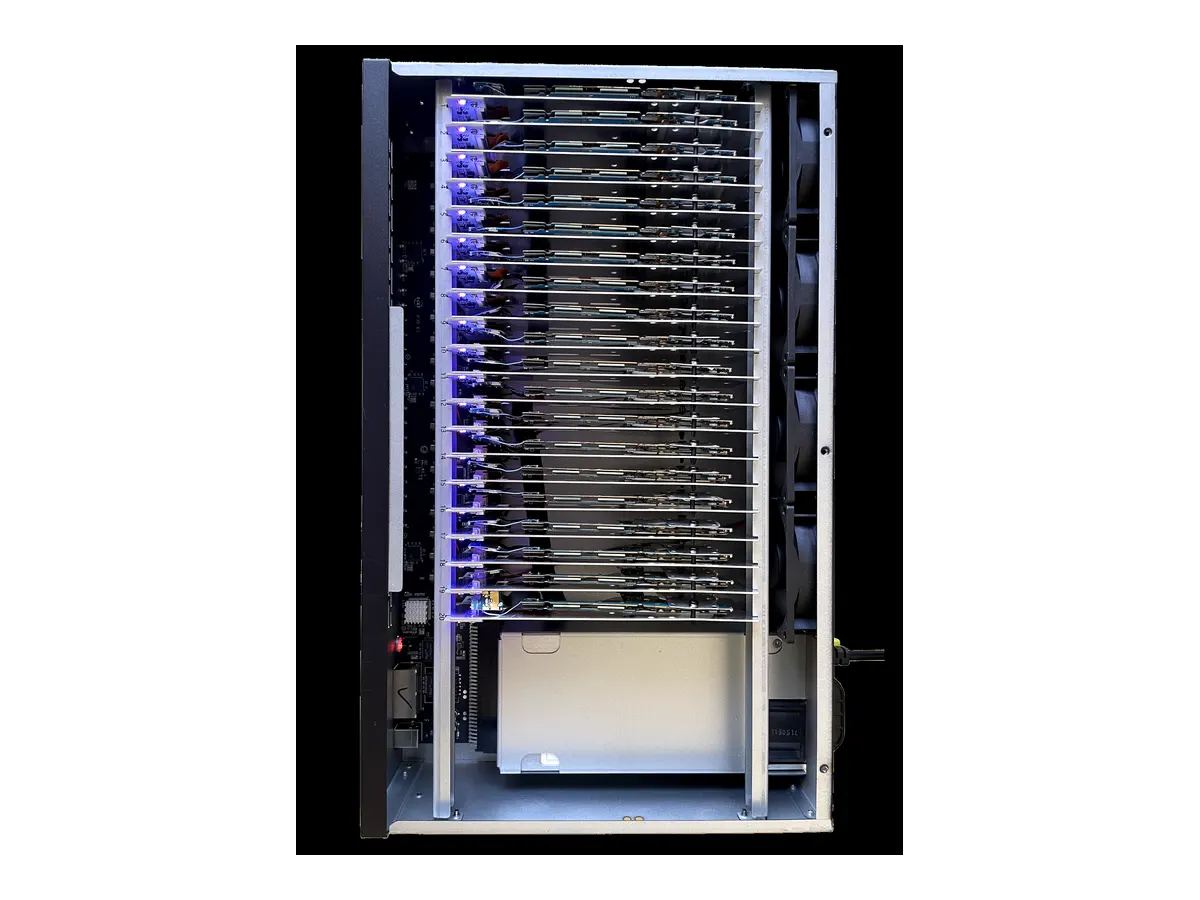

Industrial rack enclosure for mounting multiple real smartphones with shared power, cooling, and USB routing.

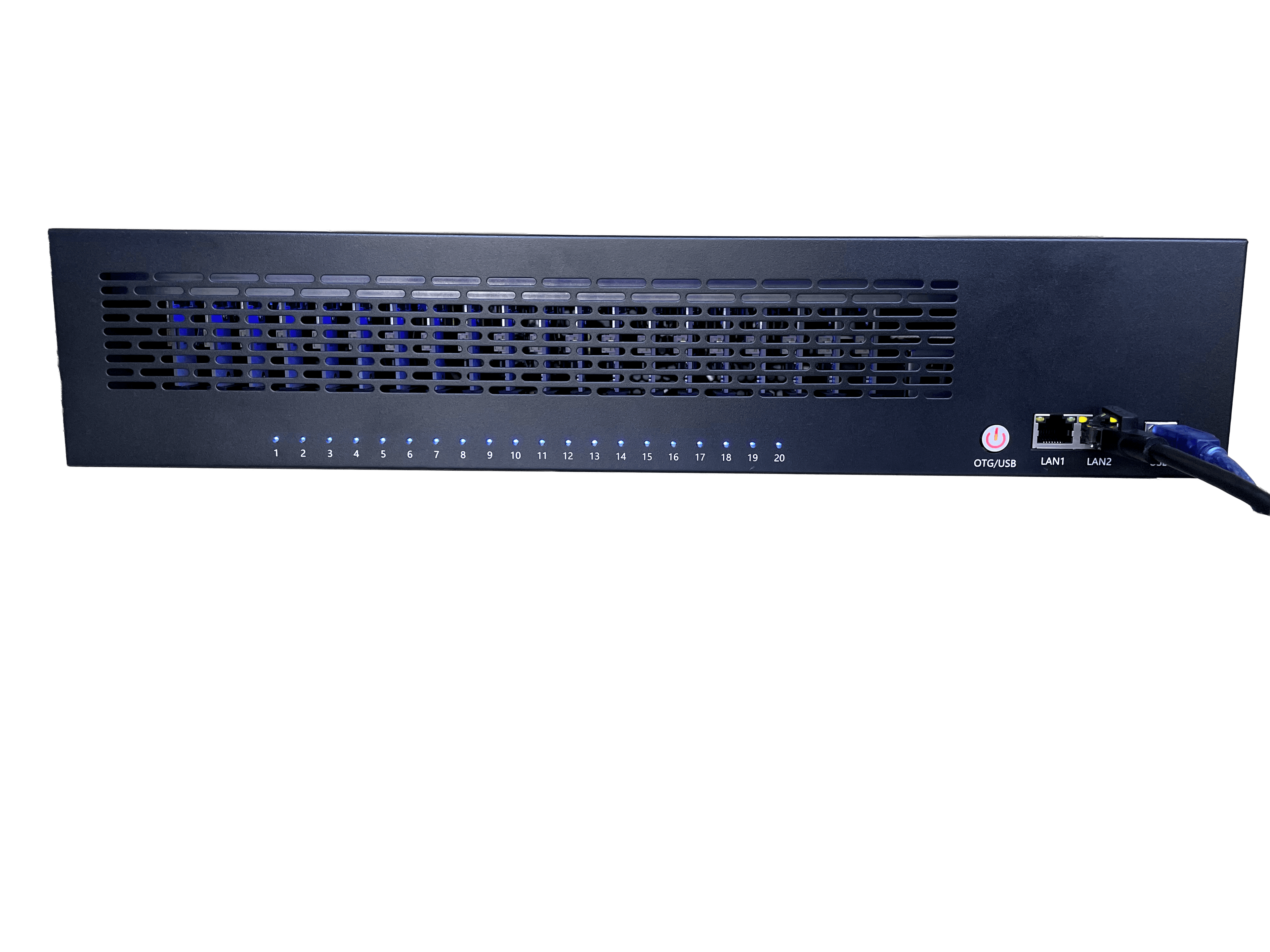

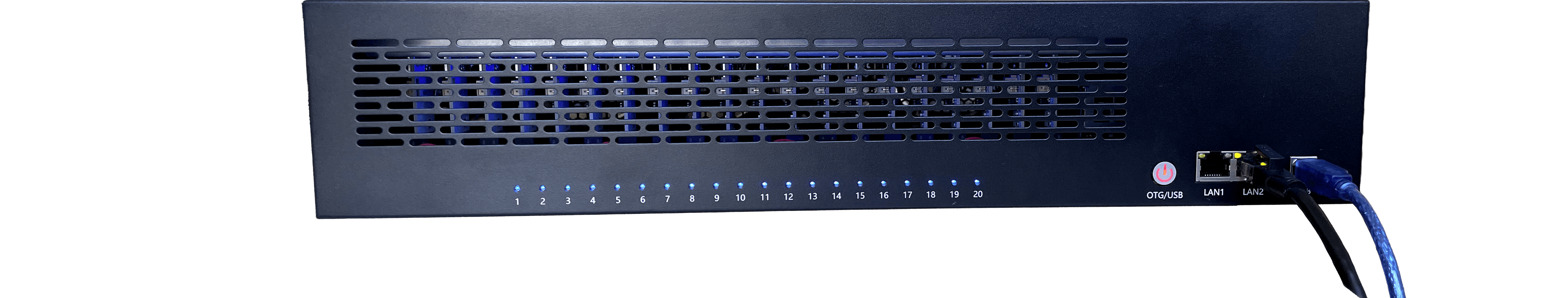

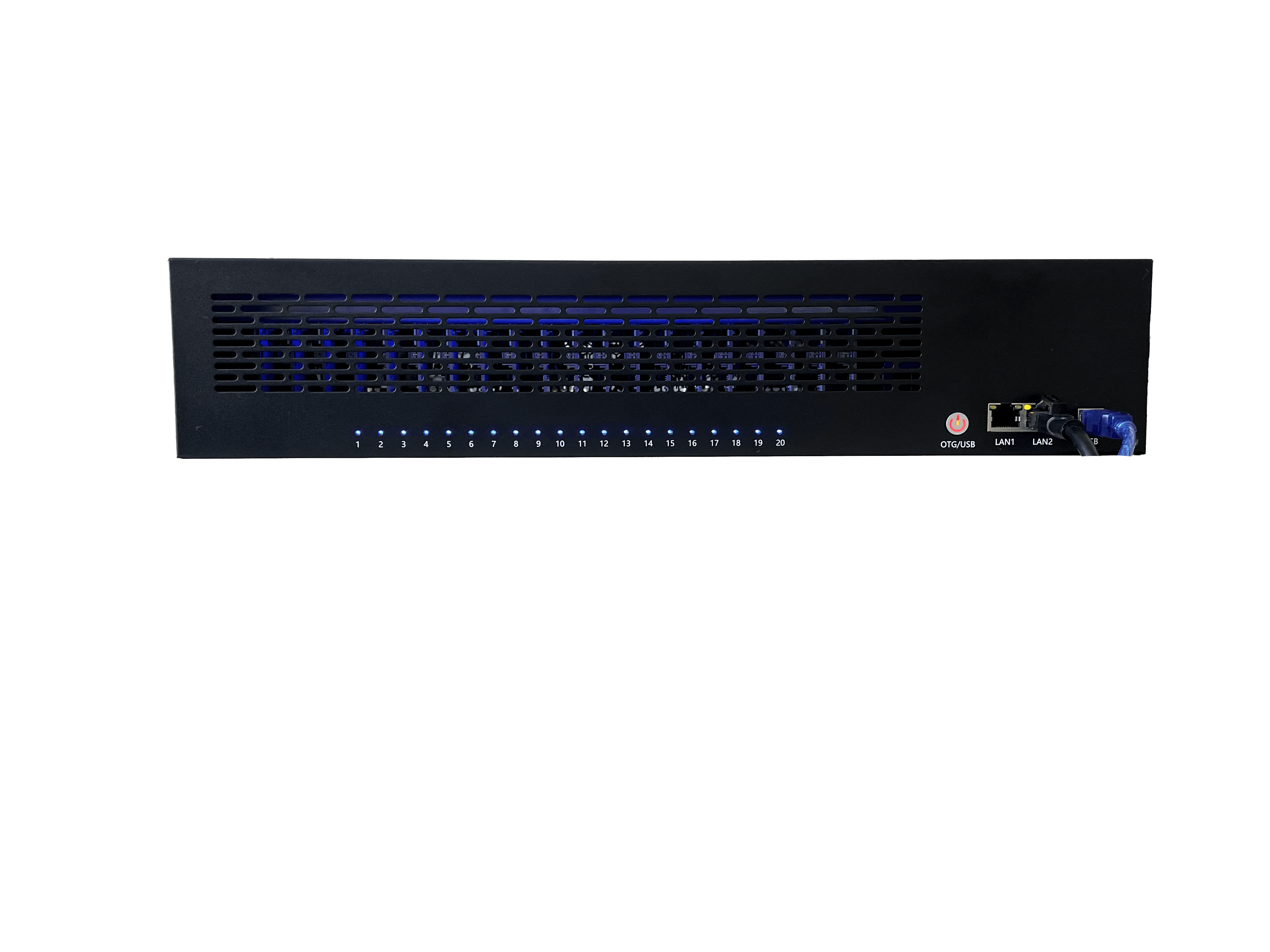

1 / 3Chassis front — status LED row
Line: Rack Systems
Reference: Up to 20 device slots per rack
- ·Samsung S8 (6GB+128GB, USB+LAN) · S10 · S10 Change · S8 Change · Note 9
- ·LAN1 + LAN2 (RJ45) · USB Type-B · OTG/USB switch · numbered LED row
- ·Metal chassis with labeled device slots
$699USD referenceIn Stock (15)
Reference price — final quote confirmed before payment.
Procurement path
Request a written quote for bulk racks, custom slot layouts, and export freight. Catalog reference price — final quote confirmed before payment.
Request Written Quote
Sample online orders require sales confirmation of configuration and written quote before USDT payment.
Sign In or Sign Up to track sample orders after sales confirms your quote.
Warranty
12-month hardware support on chassis, fans, and PSU
Shipping
Global export from Guangzhou
Payment
USDT after confirmation
Sales contact
Telegram @huicheng1998 · WhatsApp +85262155642 · qiuxui646@gmail.com
About This Product
The Phone Farm Box is our standard rack chassis for teams deploying full Android or mixed-device arrays. Slots accept complete phones with screens — suitable when your workflow needs cameras, sensors, and on-device displays. Final slot count, cable length, and PSU rating are confirmed against your phone model list during quoting.
- ✓Metal chassis with labeled device slots
- ✓Centralized power bus — no per-phone wall chargers
- ✓Active fan airflow across the device row
- ✓Single USB uplink to control workstation
- ✓Burn-in tested before export packing
Specifications
| Product type | Full-phone rack enclosure (Box Phone Farm) |
| Reference models | Samsung S8 (6GB+128GB, USB+LAN) · S10 · S10 Change · S8 Change · Note 9 |
| Typical capacity | Up to 20 device slots per rack |
| Front panel I/O | LAN1 + LAN2 (RJ45) · USB Type-B · OTG/USB switch · numbered LED row |
| Node interface | USB + LAN port per slot |
| Typical node spec | 6GB RAM + 128GB storage class (model-dependent) |
| Chassis material | Steel frame with ventilated panels and rack mounting ears |
| Rear cooling | 4× high-airflow fan module |
| Power input | 110–220V AC · 550W class PSU typical (region-specific cable) |
| Typical power draw | Continuous draw varies with charging load — plan 200–400W class for a loaded 20-node rack (peak PSU rating higher; confirm in quote) |
| Control uplink | USB hub to Windows / Linux control workstation |
| Typical dimensions | Approx. 43.5 × 27.5 × 9 cm — confirm per phone model list |
| Weight | Approx. 9–12 kg net (chassis + fans + PSU, phones not included) · gross carton per packing list |
| Gross weight | Approx. 11–14 kg per export carton (single rack, accessories included) |
| Packing size | Export carton approx. 50 × 35 × 25 cm (L × W × H) — confirm on packing list |
| Lead time | In-stock: 5–10 business days (QC + packing) |
| Warranty | 12-month hardware support on chassis, fans, and PSU |
| Shipping | Each rack ships with accessory checklist inside the carton · Heavy units may ship on pallet for 5+ rack orders · Import duties and freight quoted separately by destination country |
| MOQ / sample order | Sample order from 1 unit. Bulk rack pricing typically discussed from 3+ identical configurations. |
| Payment method | USDT (TRC20) after order confirmation · wire transfer for enterprise bulk |
| Bulk order support | Available — contact sales for 3+ unit and project pricing |
Procurement Information
Reference terms for B2B buyers — final figures confirmed in your written quotation.
- MOQ
- Sample order from 1 unit. Bulk rack pricing typically discussed from 3+ identical configurations.
- Lead time
- In-stock: 5–10 business days (QC + packing)
- Packing size (carton)
- Export carton approx. 50 × 35 × 25 cm (L × W × H) — confirm on packing list
- Gross weight
- Approx. 11–14 kg per export carton (single rack, accessories included)
- Voltage
- 110–220V AC · 550W class PSU typical (region-specific cable)
- Warranty
- 12-month hardware support on chassis, fans, and PSU
- Shipping method
- DHL / FedEx / UPS express from Guangzhou; sea freight for bulk pallet orders
- Payment process
- USDT (TRC20) after order confirmation on /orders, or wire transfer (T/T) for enterprise bulk quotes
Full pre-sale checklist: Hardware Spec Quick Reference
Reference Configurations
Factory reference boards available for this product line. Final slot layout is confirmed against your model list in the quote.
Samsung Note 9 — 6GB+128GB — USB · LAN · OTG — Black circuit board
- Model: Samsung Note 9
- Memory: 6GB + 128GB
- Ports: USB · LAN · OTG
- Board: Black circuit board
Samsung S10 — Change — USB · LAN · OTG — Black circuit board
- Model: Samsung S10
- Variant: Change
- Ports: USB · LAN · OTG
- Board: Black circuit board
Samsung S10 — USB · LAN · OTG — Black circuit board
- Model: Samsung S10
- Ports: USB · LAN · OTG
- Board: Black circuit board
Samsung S8 — Change — USB · LAN
- Model: Samsung S8
- Variant: Change
- Ports: USB · LAN
Samsung S8 — USB · LAN
- Model: Samsung S8
- Ports: USB · LAN
Typical Use Cases
- Mobile app QA and regression testing on real hardware
- Social media agency device banks for content preview workflows
- Cross-OS version compatibility testing
- Device management infrastructure for enterprise mobile ops
Before You Order
- — Share phone make, model, and connector type (USB-C / Micro-USB) for slot and cable matching
- — Phone dimensions determine final slot count — not all 20-slot layouts fit every model
- — Works with common ADB-based device management tools — software not included
FAQ
Do you supply the phones?+
This SKU is the rack hardware. Most buyers supply their own phones. We can advise on slot compatibility for your models.
How many phones fit one box?+
Depends on phone size. Share your model list — we confirm slot layout in the written quote.
