A908N — 6GB+128GB — USB · LAN · OTG — Black circuit board
- Model: A908N
- Memory: 6GB + 128GB
- Ports: USB · LAN · OTG
- Board: Black circuit board
Motherboard Box
Motherboard Box
Screenless Android motherboard chassis for high-density device labs without full phone shells.
1 / 7A908N — 6GB+128GB — USB · LAN · OTG — Black circuit board
Line: Motherboard Box Systems
Reference: 15–20 motherboard nodes per chassis
- ·A908N class — 6GB + 128GB, USB + LAN + OTG
- ·Black circuit board mounting without display/battery
- ·Screenless motherboard node mounting
$1,680USD referenceIn Stock (8)
Reference price — final quote confirmed before payment.
Procurement path
Request a written quote for bulk racks, custom slot layouts, and export freight. Catalog reference price — final quote confirmed before payment.
Request Written Quote
Sample online orders require sales confirmation of configuration and written quote before USDT payment.
Sign In or Sign Up to track sample orders after sales confirms your quote.
Warranty
Fan and PSU replacement parts stocked for standard builds
Shipping
Global export from Guangzhou
Payment
USDT after confirmation
Sales contact
Telegram @huicheng1998 · WhatsApp +85262155642 · qiuxui646@gmail.com
About This Product

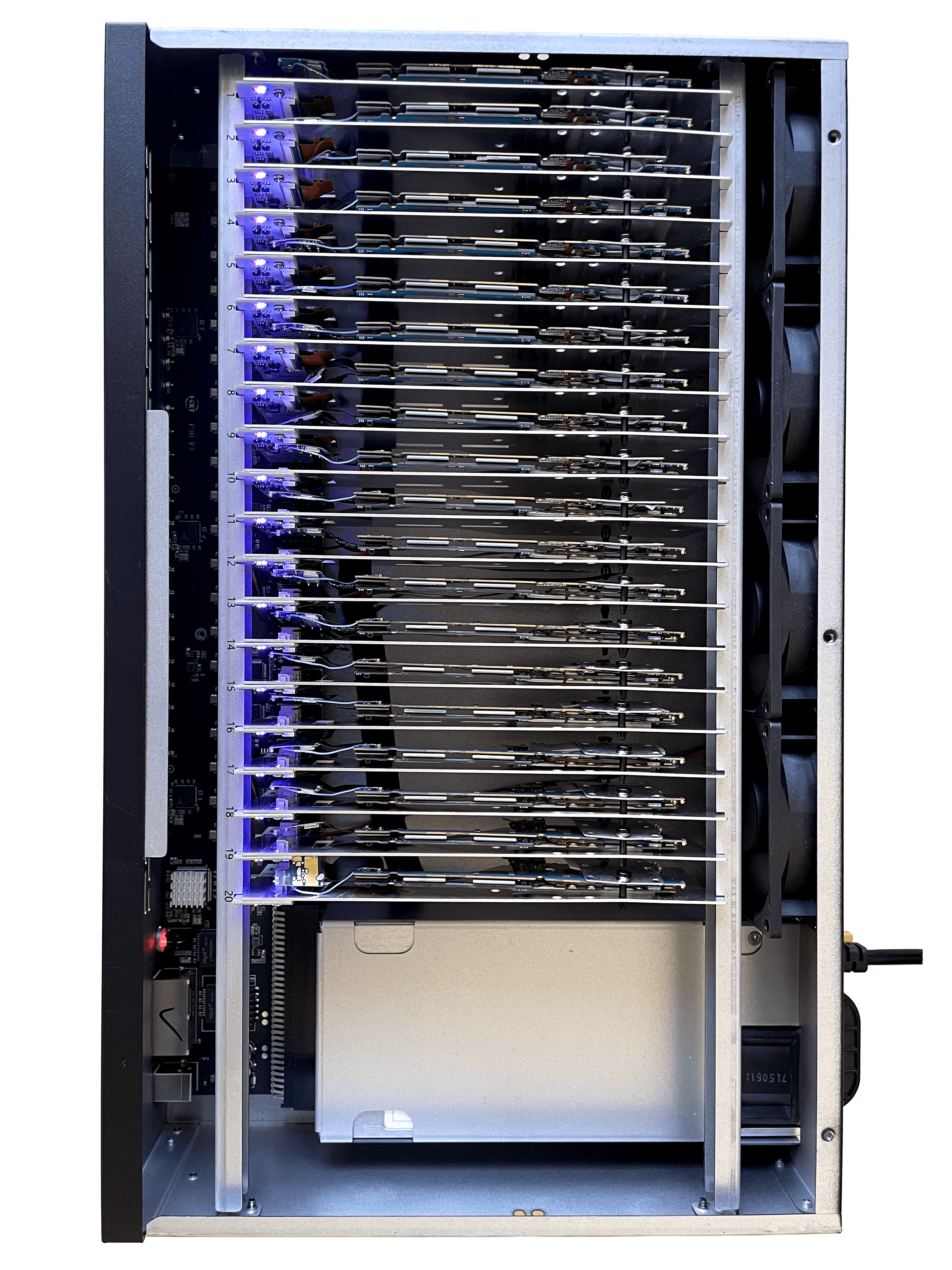

The Motherboard Box mounts smartphone motherboards without displays or batteries into a cooled metal frame with centralized power delivery. It reduces per-node cost and footprint compared to full-phone racks — common in Android QA labs and device management teams that do not need on-device screens during daily operation.
- ✓Screenless motherboard node mounting
- ✓Centralized PSU replaces individual battery charging
- ✓Higher node density than full-phone racks
- ✓ADB-accessible via USB hub routing
- ✓Workshop assembly with thermal spot-check
Specifications
| Product type | Motherboard box (screenless Android nodes) |
| Reference platform | A908N class — 6GB + 128GB, USB + LAN + OTG |
| Node type | Black circuit board mounting without display/battery |
| Typical capacity | 15–20 motherboard nodes per chassis |
| Power | Industrial centralized PSU |
| Cooling | Multi-fan airflow across motherboard row |
| Connectivity | USB hub with per-node data path |
| Chassis | Approx. 43.5 × 27.5 × 9 cm reference size |
| Weight | Approx. 8–11 kg net (chassis + fans + PSU, boards not included) |
| Power input | 110–220V AC · industrial PSU sized per node count |
| Typical power draw | Lower per-node than full-phone racks — budget PSU tier confirmed against your motherboard count in quote |
| Compatible boards | A908N (6GB+128GB) · Note 8 · Note 10 Lite Change · OnePlus 5 Super Change · Nubia Z17 — confirm slot layout before order |
| Warranty | Fan and PSU replacement parts stocked for standard builds |
| Shipping | Chassis and hub packed separately within one carton for shock protection · Bulk motherboard box orders may share one pallet shipment |
| MOQ / sample order | 1 unit for evaluation. Density-pack pricing from 2+ boxes on the same board specification. |
| Payment method | USDT (TRC20) after order confirmation · wire transfer for enterprise bulk |
| Bulk order support | Available — contact sales for 3+ unit and project pricing |
Procurement Information
Reference terms for B2B buyers — final figures confirmed in your written quotation.
- MOQ
- 1 unit for evaluation. Density-pack pricing from 2+ boxes on the same board specification.
- Lead time
- In-stock SKUs: 5–10 business days (workshop QC + packing). Custom configuration: 7–15 business days.
- Packing size (carton)
- Pallet or multi-carton shipment — outer dimensions on packing list
- Gross weight
- Approx. 8–11 kg (chassis + fans + PSU, boards not included) · gross carton typically +2–3 kg on packing list
- Voltage
- 110–220V AC · industrial PSU sized per node count
- Warranty
- 12-month hardware support on chassis, fans, and PSU modules (terms in quotation)
- Shipping method
- DHL / FedEx / UPS express from Guangzhou; sea freight for bulk pallet orders
- Payment process
- USDT (TRC20) after order confirmation on /orders, or wire transfer (T/T) for enterprise bulk quotes
Full pre-sale checklist: Hardware Spec Quick Reference
Reference Configurations
Factory reference boards available for this product line. Final slot layout is confirmed against your model list in the quote.
Nubia Z17 — Super Change — USB · LAN · OTG
- Model: Nubia Z17
- Variant: Super Change
- Ports: USB · LAN · OTG
OnePlus 5 — Super Change — USB · LAN · OTG
- Model: OnePlus 5
- Variant: Super Change
- Ports: USB · LAN · OTG
Samsung Note 10 Lite — Change — USB · LAN · OTG — Black circuit board
- Model: Samsung Note 10 Lite
- Variant: Change
- Ports: USB · LAN · OTG
- Board: Black circuit board
Samsung Note 8 — 6GB+64GB — USB · LAN · OTG — Black circuit board
- Model: Samsung Note 8
- Memory: 6GB + 64GB
- Ports: USB · LAN · OTG
- Board: Black circuit board
Samsung Note 8 — Super Change — USB · LAN · OTG
- Model: Samsung Note 8
- Variant: Super Change
- Ports: USB · LAN · OTG
Typical Use Cases
- Android app automation in headless device labs
- High-density mobile testing without display output
- Device management fleet provisioning
- SIM profile and carrier testing in controlled lab networks
Before You Order
- — Motherboard make and model must be shared before quoting — slot spacing is not universal
- — SIM tray support varies by board — specify if SIM lab testing is required
- — Not suitable for iOS — Android motherboard deployments only
FAQ
Can I use this without screens permanently?+
Yes — designed for headless operation. Occasional screen attach may be needed for USB debugging authorization recovery.
Is this the same as a phone farm rack?+
No — this uses bare motherboards for density. Choose a Phone Farm Box if you need full phones with displays.
